With more than 18 years experiences of designing and developing optical fiber solutions,and first-class fabricating workmanship from Japan,3V TECHNOLOGY is a professional world-service manufacturer,who can support customized requirements.
We specialize in:

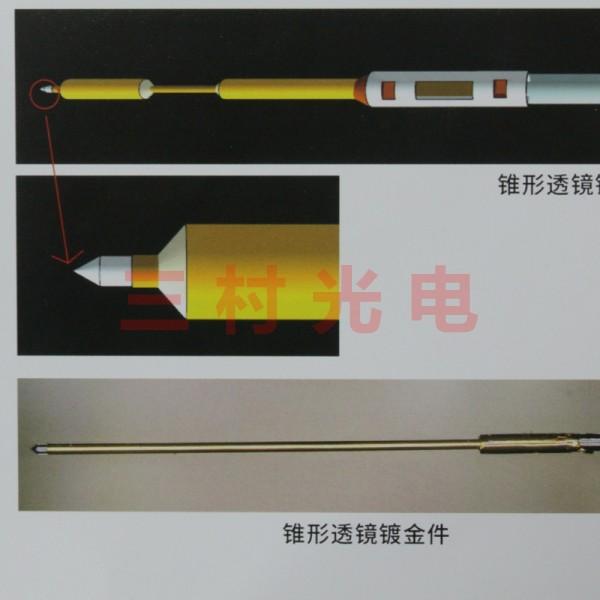

1)Lensed fiber(process the fiber tip’s shape and endface angle as clients’ request )
2)Single fiber/ribbon fiber metalling and assembling(Au-plating processing)
3)Fiber hermetic feedthrough on single fiber or multi-channels fiber components
4)Cutomized fiber array(SM/MM/PM fiber array)
5)PM pigtail/patchcord/PM-MT/PM-MPO
| Fiber type |
SM/MM/PM or customize |
| Fiber Channal |
1CH/2CH/4CH/8CH/12CH/48CH or customize |
| Plating Layer |
Ni:5-10um
Au:0.5-1.0um |
| Plating Position |
The middle(1-10mm)
The front(1-30mm) |
| Insertion Loss(dB) |
≤0.2 |
| Return Loss(dB) |
≥50 |

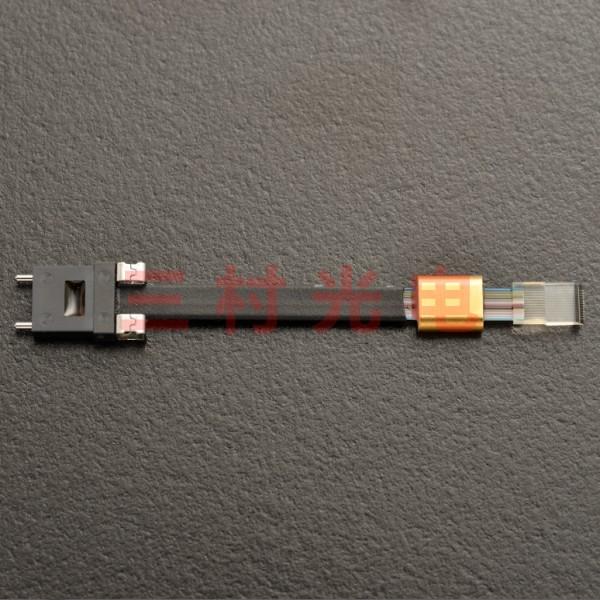

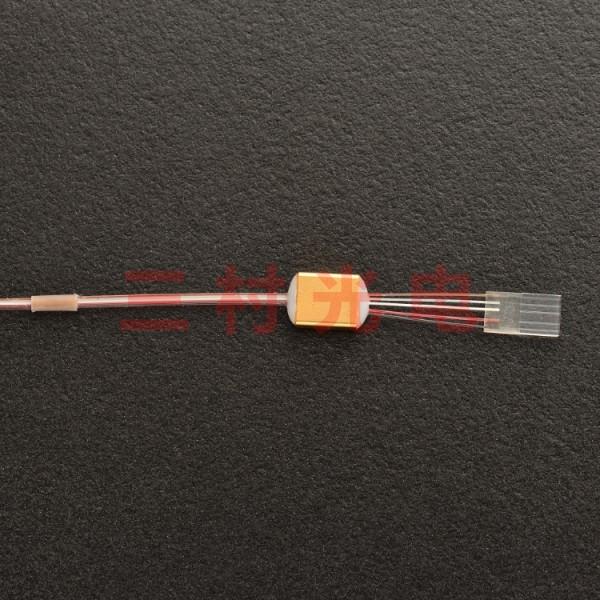

Typical Feathers of hermetica fiber array
| V-groove’s material |
Quartz/Tempax or customize |
| Connector Type(Optional) |
LC/FC/SC/MU/MPO or customize |
| Endface Polished-Angle |
0-50 degree or customize |
| Plating Layer |
Ni:5-10um;Au:0.5-1.0um or customize |
| Plating Position |
The middle(1-10mm);The front(1-30mm) or customize |
| Package Material for Feedthru |
Glass,Kovar( 4J29) ,SUS or customize |
| Package Type for Feedthru |
Glass,Metal sealing |
| Fiber type |
SM/MM/PM or customize |
| Fiber Channal |
1CH/2CH/4CH/8CH/12CH/48CH or customize |
| Core Pitch(um) |
125,175,250 or customize |
| Stress Rod’s angle |
0 degree/90 degree or customize |
| PER(dB) |
≥18 or customize |
| Insertion Loss(dB) |
≤0.2 |
| Return Loss(dB) |
≥50 |
| Hermeticity |
1.0E-8ccHe/s;1×10-9M Pa·m3/s |
