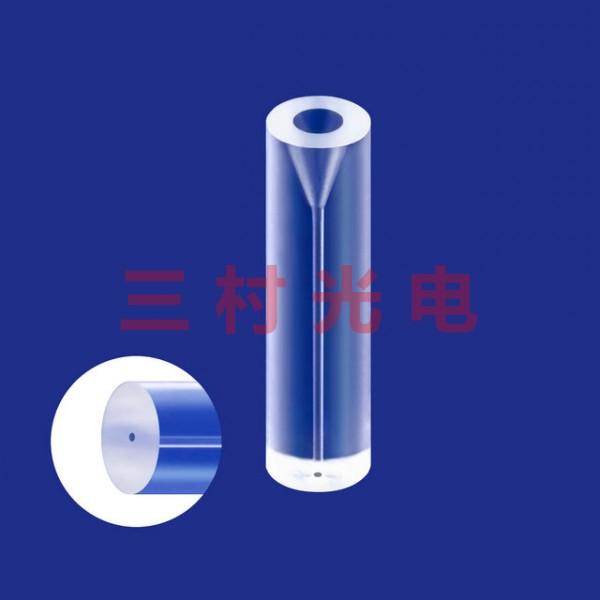

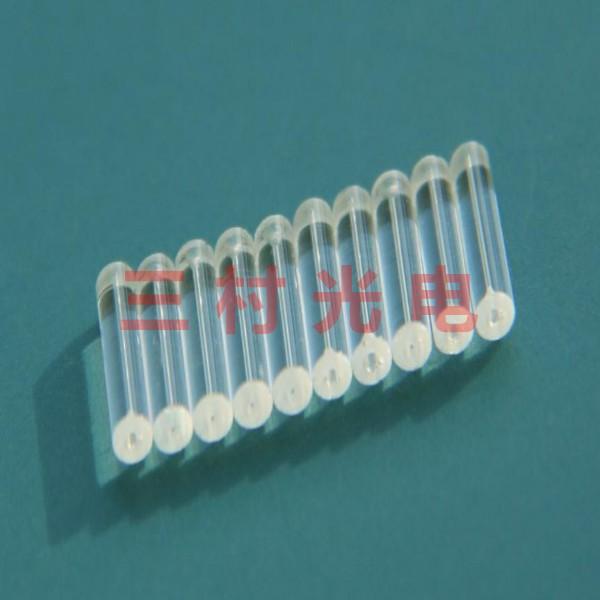

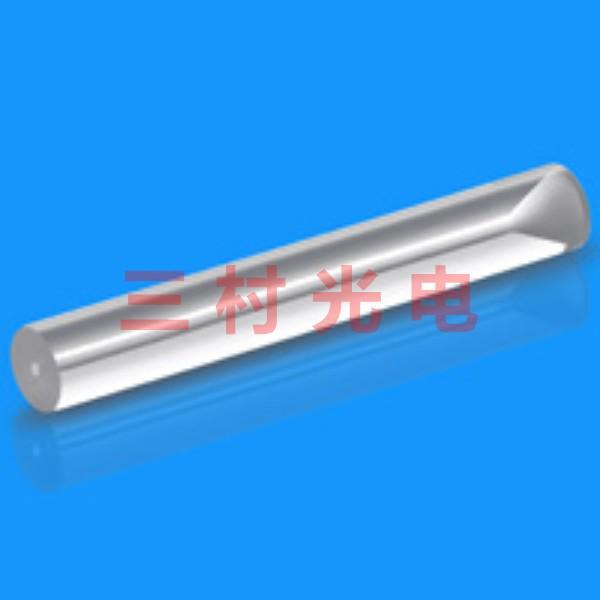

φ2.5mm Cylindrical Glass Ferrule

  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
  • φ2.5mm Cylindrical Glass Ferrule
Model No.︰φ2.5mm
Brand Name︰3V-TECH
Country of Origin︰China
Unit Price︰US $ 1 / pcs
Minimum Order︰10 pcs
Share on:

 Total 15 Related Items
Prev678910Next

Product Description

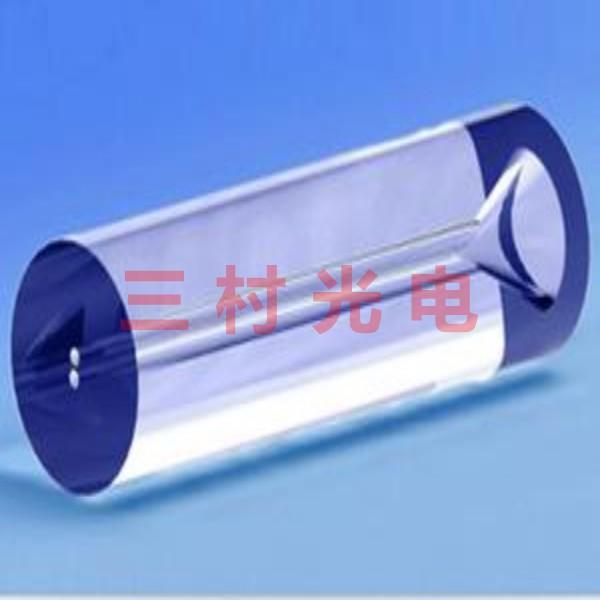

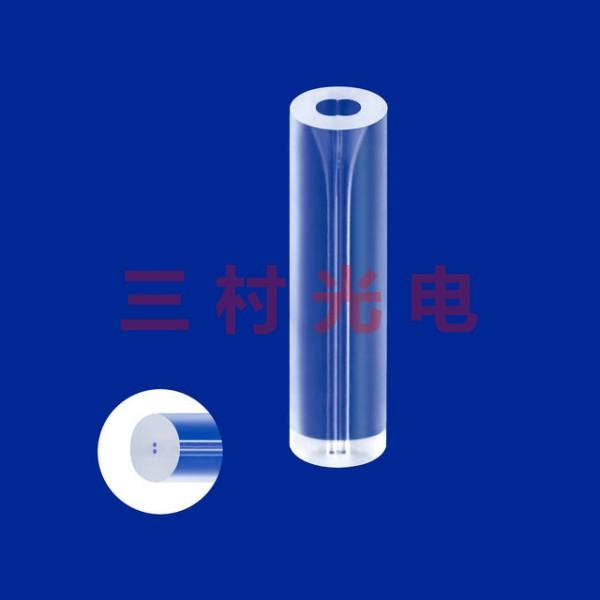

3V TECHNOLOGY is a professional manufacturer with 18years experiences in producing optic fiber glass capillary,round-shape ferrule,square-shape ferrule,D-shape ferrule or others.single-core type;dual-core type;multi-core type;cylindrical/rectangular shape optional;customized fiber glass capillary is supportable.



Features:

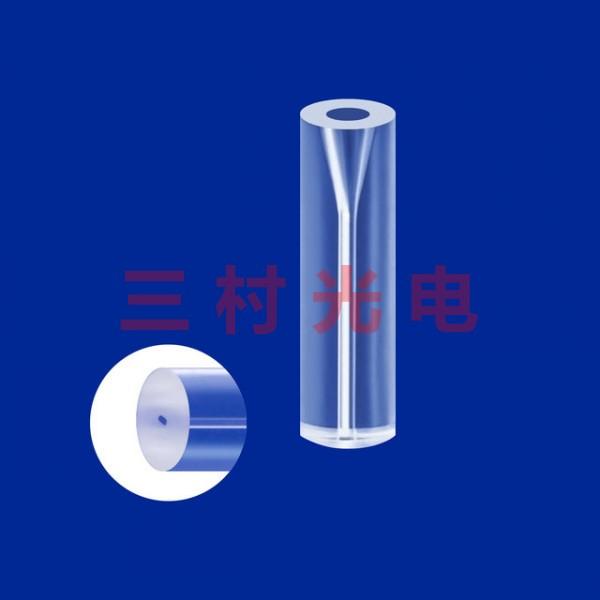

-Etching process for taper hole

-Good consistency of taper hole

-Good reliability and stable performance in harsh environment

-High chemical stability

-Machinable high-precision components



Application Field:

optical communications, sensing, lasing,medical devices and other industries.



Technical Parameters:



Material Schott BF33(Borosilicate) or Ceramic(zirconia)
O.D/Shape

O-Type:0.5mm,0.9mm,0.99mm1.0mm,1.8mm,2.5mm(±0.005mm)

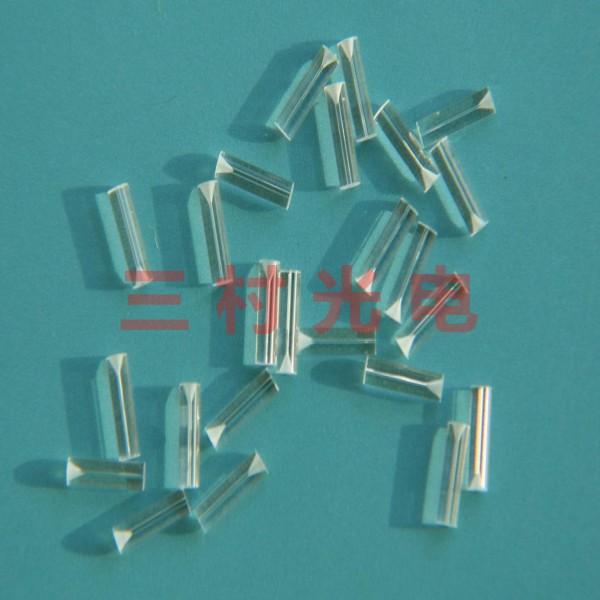

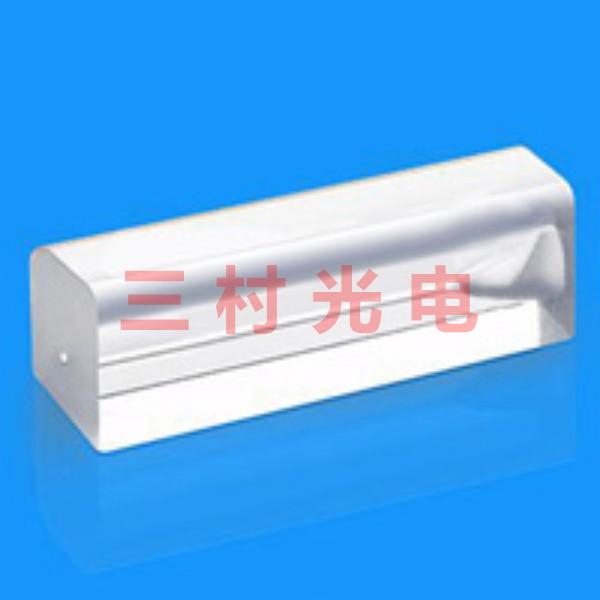

Square-Type:1.25mm,1.4mm,1.5mm,2.0mm,2.5mm,3.0mm(±0.05mm)

D-Type:D0.9,D1.25,D2.2(±0.05mm)

We support customized order.

I.D

O-Type:(Φ0.5mm~2.5mm)±0.001mm

Square-Type: 0.127±0.001mm

D-Type: 0.127±0.001mm

We support customized order.

Length 7±0.1mm or customize
Lead L1.5±1mm;W0.75±0.25mm or customize


Payment Terms︰TT
