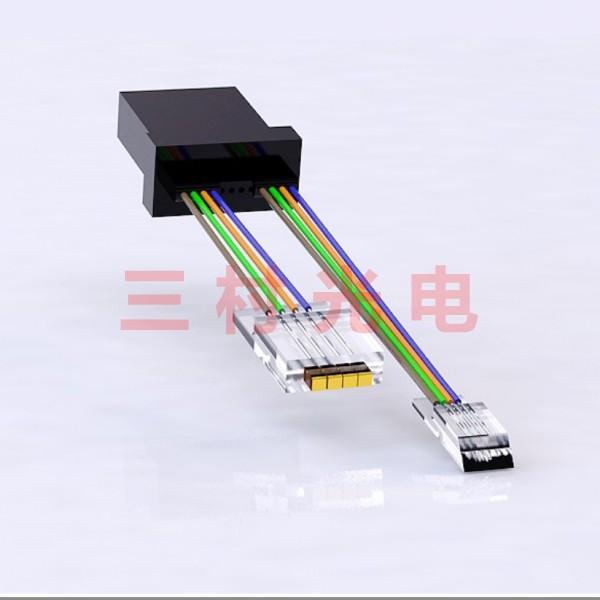

FA-MT sub-assembly for DR4 module

Model No.︰定制
Brand Name︰3V-TECH
Country of Origin︰China
Unit Price︰US $ 1 / pcs
Minimum Order︰10 pcs
Share on:

 Total 10 Related Items
12345Next

Product Description

With more than 18 years experiences in optical communiation field,3V TECHNOLOGY is a world-service expert for fiber optic solutions.Our products are high-quality & eco-friendly with the best quality materials and the most perfect process manufacturing, all will compliant with Rohs&Reach2.0,andIEC standards.
3V TECHNOLOGY specializes in high-level fiber optic components,​LC attenuation loopback;MPO attenuation loopback;MPO patch cord;MTP patch cable and other MPO/MTP sub-assembly.special fiber array,fiber pigtail and collimtors; Relying on our these years experience accumulation,we also design and develop according to clients' special requirements.
MPO series pre termination refers to the end of the fiber sector MPO single head 8/12/24 cores connector, and the other end is assembled with LC/SC/FC connector specified. It is mainly used in the pre terminal module box,connecting terminal jumper,pre trunk optical cable and equipment, to achieve modular, plug and play, compared with the traditional welding, which greatly improves the convenience and efficiency of work



MT-MT connector



Features:

8-12 core fiber available

small in size ,easy to management

loss mode: Low loss;Standard Loss

Different in fiber connection according to QSFP requirement

Manufacturer of MT:US Conec or SENKO Optional



Applications:

QSFP module

Data Center



Specifications:

Fiber type

single mode

multimode

Standard insertion loss

typical(dB)

0.35

0.35

Maximum(dB)

0.75

0.60

Low insertion loss

typical(dB)

0.20

0.20

Maximum(dB)

0.35

0.35

Return loss        (dB)

≥60(APC)

≥20(PC)

≥50(PC)

Tensile Strength  (kgf )

10

Durability          (dB)

≤0.2   500 matings

working temperature        (℃)

-40 ~+85

Test wavelength         (nm)

1310

850



MT-FA connector



Features:

8-12 core fiber available

small in size ,easy to management

loss mode: Low loss;Standard Loss

Different in fiber connection according to QSFP requirement

Manufacturer of MT:US Conec or SENKO Optional



Applications:

QSFT module

Data Center



Specifications:

Fiber type

single mode

multimode

Standard insertion loss

typical(dB)

0.35

0.35

Maximum(dB)

0.75

0.60

Low insertion loss

typical(dB)

0.20

0.20

Maximum(dB)

0.35

0.35

Return loss        (dB)

≥60(APC)

≥20(PC)

≥50(PC)

Tensile Strength  (kgf )

10

Durability          (dB)

≤0.2   500 matings

working temperature        (℃)

-40 ~+85

Test wavelength         (nm)

1310

850



Payment Terms︰T/T
