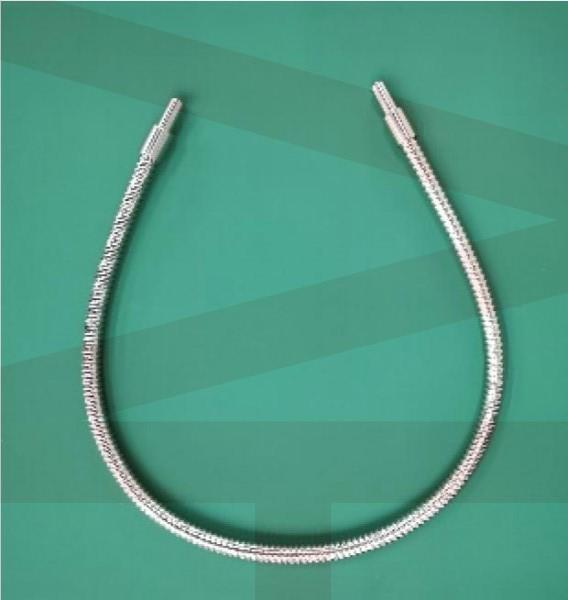

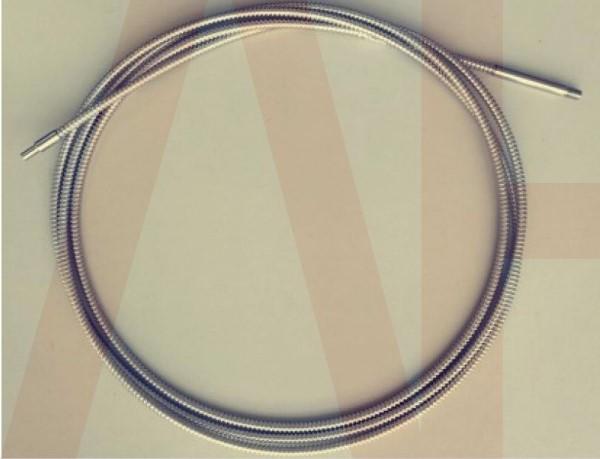

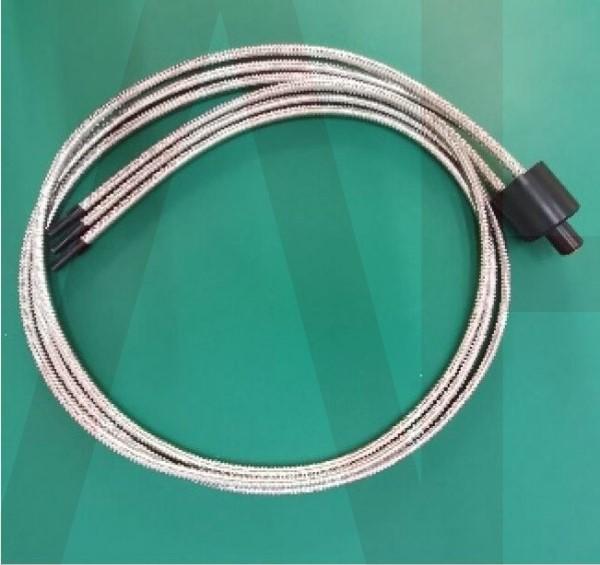

bundled glass fiber

  • bundled glass fiber
  • bundled glass fiber
  • bundled glass fiber
  • bundled glass fiber
  • bundled glass fiber
  • bundled glass fiber
Model No.︰Customized
Brand Name︰3V-TECH
Country of Origin︰China
Unit Price︰US $ 65 / Meter
Minimum Order︰10 Meter
Share on:

Product Description

3V TECHNOLOGY provides various types of bundled glass fiber products to realize light conduction and light shaping, light homogenizing, light collecting, light beam splitting, etc., make your optical system more efficient,more personalized with our customization support. It can also be assembled with collimating lens and coupling lens to collimate, converge and,beam expansion, etc., to optimize the performance of the optical system.

Typical application:

Industrial field;Medical field,Scientific research

▷ Smoke detection

▷ Particle detection


▷ Testing instrument

▷laser therapy

▷Fluorescence excitation

▷Quanlity controlling

▷DNA analysis

▷ Spectrum analysis

▷Colorimetric analysis

▷Protein analysis

▷Sensor  ▷Remote lighting  ▷Flame analysis

▷Cold light source

▷Laser transmission

Performance Parameter:

▷Transmission wavelength range(nm):380-1200
▷NA value:0.56 ± 0.02
▷Single fiber’s diameter:30um/50um
▷Projective outside tube:PVC,Stainless steel braided hose or customize
▷Fiber Bundle’s diameter(mm):3/5/8/10 or customize
▷Fiber Bundle’s length(m):1.0/1.5/2.0/3.0/5.0 or customize
▷Temperature resistance range:-40~120℃、-40~250℃;
▷Assembled customized lens is supportable(like collimating lend,focusing lens)

Payment Terms︰T/T
